Machining
Precision CNC Machining for the Perfect Part
Miro Manufacturing’s machining experience began over 30 years ago machining die details. Today, our machines still produce die details, but our focus is milling, drilling, boring and turning custom production parts. Miro is comfortable handling your prototype to medium production volume components.

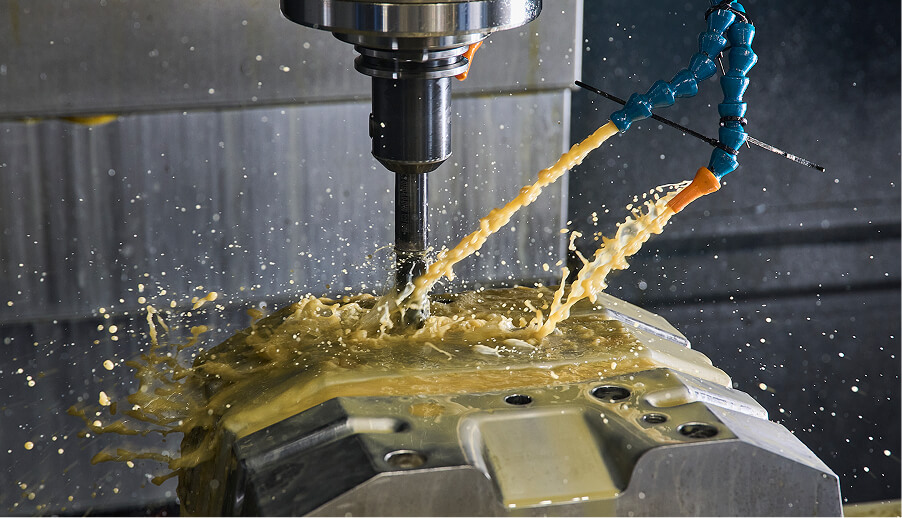

Custom Metal Machining
Miro Manufacturing works closely with our customers from product inception through the final approved version. By doing this, we eliminate any issues moving from prototype status to production manufacturing. An example of a prototype development project Miro engaged in was machining of an additive manufactured engine block. The critical phase of the project involved boring the cylinder. Miro used its high precision deep hole boring system to machine the cylinder 16” deep and 3” in diameter holding a .0002” tolerance. When the engine goes into production, Miro will supply the machined block as well as a number of other component parts. This is a typical example of Miro working with customers to develop their products – from Start to Part. Miro will do the same for you.
- Machining Capabilities
- Materials Processed
- Wire EDM Cutting Capabilities
- Small Hole EDM Drilling
- Common Wire EDM Applications
- Incredible Precision
Wire EDM Services
Combining our EDM manufacturing ability with our other cutting and machining capabilities will simplify multi-process projects. Whether your requirements consist of a single, one-of-a-kind component or ongoing production quantities, consider Miro for your wire EDM needs, as well as a single source supplier.
Capabilities for Every Challenge
From producing new parts to retooling existing components, we take on challenges that others can’t. Our proven expertise in tooling and stamping delivers precision, repeatability, and consistent quality every time.
Machining Capabilities
- CNC Vertical Machine Centers with travels to 86” x 34” x 30”
- Turning to 20” diameter x 40” long
- Surface grinding to 20” x 40”
- Wire EDM to 19” x 13” x 11”
Materials Processed
- Mild Steel
- Tool Steel
- Hardened Tool Steel
- Stainless Steel
- Aluminum
- Plastics

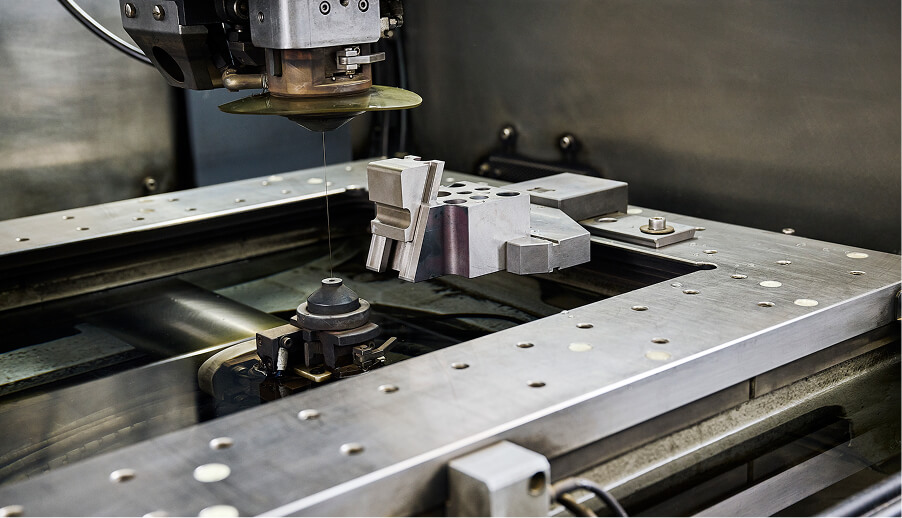

Wire EDM Cutting Capabilities
We utilize wire diameters of .010” to .012” yielding a tolerance of ± .0001. Our wire EDM machines have a travel of 20″ x 14″ x 12″ (X Y Z). Equipped with automatic wire threading, our machines are able to operate 24 hours a day.
Small Hole EDM Drilling
We offer small-hole EDM drilling to produce start holes, machine blind or through holes, or to remove broken taps. Our equipment has the capability to drill holes from .010” to .125” diameter in hardened steel.
Common Wire EDM Applications
Wire EDMs are able to cut aluminum, brass, bronze, carbide, stainless and tool steels. Gears, sprockets and splines lend themselves well to the wire EDM process.
Incredible Precision
Miro Manufacturing’s electrical discharge machining services use state-of-the-art submersible wire EDM machines to produce die and mold tooling components as well as prototype and production parts.
The Miro Difference
Choosing Miro means simplifying your supply chain with a single-source partner that adapts as your needs evolve. From design through production, we focus on efficiency and quality to deliver reliable results “From Start to Part.”
Request a Quote Today.
"*" indicates required fields
Industries Served
Architectural & Structural
Metals
Electrical Generators
Food Processing
Heat Transfer
Heavy Truck
Internal Combustion Engines
Lawn & Garden
Paper Processing
Power Management
Medical
And more….
